Hi,

Ive been looking around for diagrams that will specify certain model numbers but was unsuccessful.

The light at the back (right side) of my q7 burnt out. The light in question is below the tail light, covered in orange plastic. I believe incorporated at the back bumper.


Btw, its an 08 model.

Thanks.

Jdq1983

Just to add, the midsection of the light is functional, its the farthest light(right side) that is burnt out.

spijun

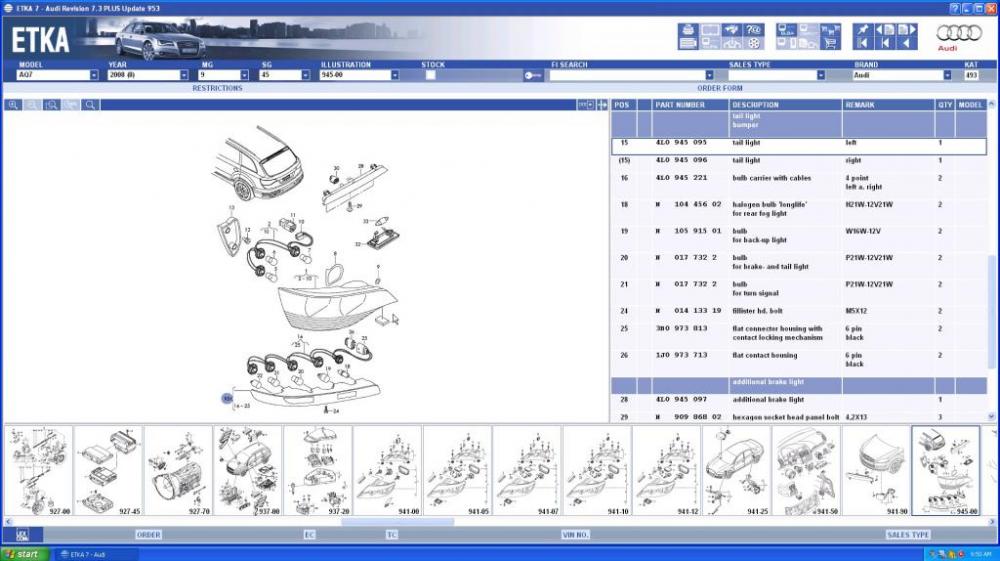

You mean the this

Jdq1983

thank you very much for your diagram. i can't seem to make out the numbering system. I reckon the part in question is 21(turn signal- farthest light on the bumper light assembly). except of course mine would be the opposite side since the diagram shows the left side of the bumper lights. Can you confirm> I think i see 18-19-20-21-22?(though i dont see it in your list). Again, thanks for your help spijun.

spijun

Here you find the PDF format with all details
Zippyshare.com - Q7.pdf

I could not attach here because it does not support PDF

Jdq1983

Wow, thanks for the clear copy! I may be reading it incorrectly but i cant seem to find POS 22 in your list. The list states 21 then skips to 24. Am i reading it wrong?

spijun

There are no positions 22 and 23
This is from an electronic catalog of spare parts

Jdq1983

Ahhh i see it. So really the turn signal bulb is the one that is burnt out (pos 21). Its the bulb closest to the tip if the bulb assembly.

Thanks spijun...i appreciate your help on this one!
