jack

Hi:
anybody can tell me where is the F-125 multifunction switch.it is around the transmission.My audi A6 2.8 99 recently shows no gear indicator on the dashboard,and checked with the diagnosis, found that the F-125 might faulty,I want to check if was getting dirty or short circuit with some stuff,but could not locate it,anybody can help?is it easy to reach?how?what tools needed?

Ecmbuster

Drivers side of the transmission, There's a shift cable attached to it. Bit of a pain to remove without a hoist and requires adjustment after installation.

jack

I went underneath but it was all covered with bolted plate I could not see anything.did you unbolt all the plates to reach it?I just want to see if the connector is loose or disconnected or use multimeter to check if the electrical signal is right.is there any easy way to reach it without that much hassle?is it better if the car is hoisted?if hoisted,can we reach it and check the condition?do we have to take some parts off to reach it?
appreciate your info.

Ecmbuster

1. Hoist
2. Metric tools including Allen keys
2. Vag-Com as the diagnostic tool for adjustments

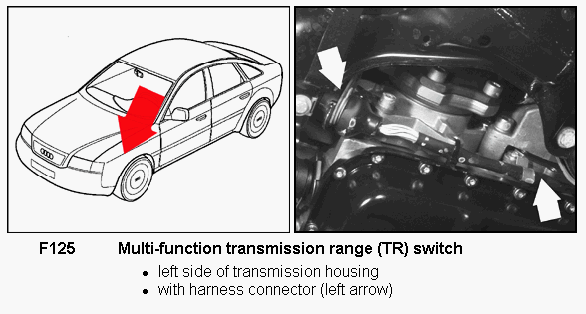

Look at the image, that should help.

yammiAudi

Hi,did you manage to clear the code and get the gear indicator back after replace your F125?
