Escort Radar 9500ci Install
10-15-2010, 12:20 AM
#1
Audi Forum - Posts like an A1
Thread Starter
Join Date: Oct 2010
Location: Alberta
Posts: 36
Escort Radar 9500ci Install
Installed Escort 9500ci in 2010 S5
Priced out new fog light grills, MMI Trim and console trim.
Placed Laser shifters in fog grills (cut and filed for perfect fit) used black rubber sleeves to make "boots" to further hide Laser hardware. Mounted provided brackets to aluminum bumper behind grills (Self tap screws).
Mounted Radar just below/left of front Audi Logo - perfect fit in grill - sits on top of front bumper trim behind grill.
Mounted ci display next to MMI display (Cut MMI trim - surface mount) ran all cables behind instrument trim.
Mounted ci controller on center/rear of console trim.
Mounted GPS on back window (Deck vibrates too much with speakers)
Still have to mount rear lasar shifter - won't fit on plate holder as rear camera interferes
Will likely mount it just above rear spoiler.
Mounted ci speaker behind drivers leg panel - empty bracket was already there.
Power via drivers-side fuse box.
Fire wall access for front laser shifters and radar is just above gas petal (firewall) and over in front of heater intake (Second noise wall) - used ci supplied grommets with stock piano grommet (Noise wall) and Can-tire 2" PVC grommet w wire lathe through fire wall.
System works great - see radar / photo radar well before they see me. System automatically learns false alarms - GPS give independent speed reading. Reminds me to drive responsibly.
Priced out new fog light grills, MMI Trim and console trim.
Placed Laser shifters in fog grills (cut and filed for perfect fit) used black rubber sleeves to make "boots" to further hide Laser hardware. Mounted provided brackets to aluminum bumper behind grills (Self tap screws).
Mounted Radar just below/left of front Audi Logo - perfect fit in grill - sits on top of front bumper trim behind grill.
Mounted ci display next to MMI display (Cut MMI trim - surface mount) ran all cables behind instrument trim.
Mounted ci controller on center/rear of console trim.
Mounted GPS on back window (Deck vibrates too much with speakers)
Still have to mount rear lasar shifter - won't fit on plate holder as rear camera interferes
Will likely mount it just above rear spoiler.
Mounted ci speaker behind drivers leg panel - empty bracket was already there.
Power via drivers-side fuse box.
Fire wall access for front laser shifters and radar is just above gas petal (firewall) and over in front of heater intake (Second noise wall) - used ci supplied grommets with stock piano grommet (Noise wall) and Can-tire 2" PVC grommet w wire lathe through fire wall.
System works great - see radar / photo radar well before they see me. System automatically learns false alarms - GPS give independent speed reading. Reminds me to drive responsibly.
10-15-2010, 07:22 AM
#2
Audi Forum - Posts like an HORCH
Join Date: Dec 2009
Location: Burlington, Ontario
Posts: 2,719
Re: Escort Radar 9500ci Install
Installed Escort 9500ci in 2010 S5
Priced out new fog light grills, MMI Trim and console trim.
Placed Laser shifters in fog grills (cut and filed for perfect fit) used black rubber sleeves to make "boots" to further hide Laser hardware. Mounted provided brackets to aluminum bumper behind grills (Self tap screws).
Mounted Radar just below/left of front Audi Logo - perfect fit in grill - sits on top of front bumper trim behind grill.
Mounted ci display next to MMI display (Cut MMI trim - surface mount) ran all cables behind instrument trim.
Mounted ci controller on center/rear of console trim.
Mounted GPS on back window (Deck vibrates too much with speakers)
Still have to mount rear lasar shifter - won't fit on plate holder as rear camera interferes
Will likely mount it just above rear spoiler.
Mounted ci speaker behind drivers leg panel - empty bracket was already there.
Power via drivers-side fuse box.
Fire wall access for front laser shifters and radar is just above gas petal (firewall) and over in front of heater intake (Second noise wall) - used ci supplied grommets with stock piano grommet (Noise wall) and Can-tire 2" PVC grommet w wire lathe through fire wall.
System works great - see radar / photo radar well before they see me. System automatically learns false alarms - GPS give independent speed reading. Reminds me to drive responsibly.
Priced out new fog light grills, MMI Trim and console trim.
Placed Laser shifters in fog grills (cut and filed for perfect fit) used black rubber sleeves to make "boots" to further hide Laser hardware. Mounted provided brackets to aluminum bumper behind grills (Self tap screws).
Mounted Radar just below/left of front Audi Logo - perfect fit in grill - sits on top of front bumper trim behind grill.
Mounted ci display next to MMI display (Cut MMI trim - surface mount) ran all cables behind instrument trim.
Mounted ci controller on center/rear of console trim.
Mounted GPS on back window (Deck vibrates too much with speakers)
Still have to mount rear lasar shifter - won't fit on plate holder as rear camera interferes
Will likely mount it just above rear spoiler.
Mounted ci speaker behind drivers leg panel - empty bracket was already there.
Power via drivers-side fuse box.
Fire wall access for front laser shifters and radar is just above gas petal (firewall) and over in front of heater intake (Second noise wall) - used ci supplied grommets with stock piano grommet (Noise wall) and Can-tire 2" PVC grommet w wire lathe through fire wall.
System works great - see radar / photo radar well before they see me. System automatically learns false alarms - GPS give independent speed reading. Reminds me to drive responsibly.
10-15-2010, 10:30 PM
#3
Audi Forum - Posts like an A1
Thread Starter
Join Date: Oct 2010
Location: Alberta
Posts: 36
Re: Escort Radar 9500ci Install
In BC AB & SASK it is still legal to have detectors; I don't understand why - laser shifting seems so "shady"
You should note that Escort claims this system is undetectable - a not so trained eye should still see the laser shifters as they require a semi clear view of the road ahead. I personally also mounted the radar "clear-view" as it matched the front grill opening perfectly and Escort claims - clear view give the greatest potential. The system does work well however if the police have good timing and target my car with pop tech (flash radar on as I approach like laser) my system would just be telling me to pull over and get my ticket. Lucky for me there are a lot of drivers with a lead foot and the Escort picks up them getting "popped". As I said before I don't go out of my way to be reckless I just use the system to be more "cautious", (knowing when not to speed is half the success). I also use the system to limit my cruise control (speeding with a second opinion) to stay out of the 4-demerit range
I guess I just like the gadgets - Next month I will be reprogramming my MMI to play the DVD video while driving - my daughter lives 4-hrs away and lugs her laptop aboard to watch movies as the road is long somewhat boring - keeps her entertained while i drive.
You should note that Escort claims this system is undetectable - a not so trained eye should still see the laser shifters as they require a semi clear view of the road ahead. I personally also mounted the radar "clear-view" as it matched the front grill opening perfectly and Escort claims - clear view give the greatest potential. The system does work well however if the police have good timing and target my car with pop tech (flash radar on as I approach like laser) my system would just be telling me to pull over and get my ticket. Lucky for me there are a lot of drivers with a lead foot and the Escort picks up them getting "popped". As I said before I don't go out of my way to be reckless I just use the system to be more "cautious", (knowing when not to speed is half the success). I also use the system to limit my cruise control (speeding with a second opinion) to stay out of the 4-demerit range
I guess I just like the gadgets - Next month I will be reprogramming my MMI to play the DVD video while driving - my daughter lives 4-hrs away and lugs her laptop aboard to watch movies as the road is long somewhat boring - keeps her entertained while i drive.
Re: Escort Radar 9500ci Install
03-27-2011, 03:28 PM
#6
Audi Forum - Posts like an A1
Thread Starter
Join Date: Oct 2010
Location: Alberta
Posts: 36
Re: Escort Radar 9500ci Install
Pics of the 9500ci install

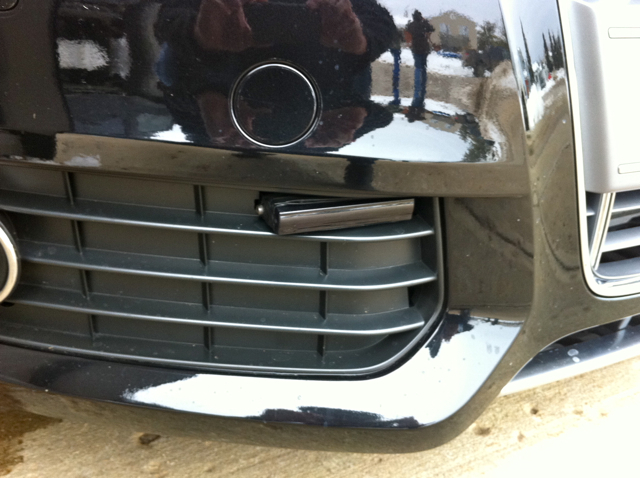

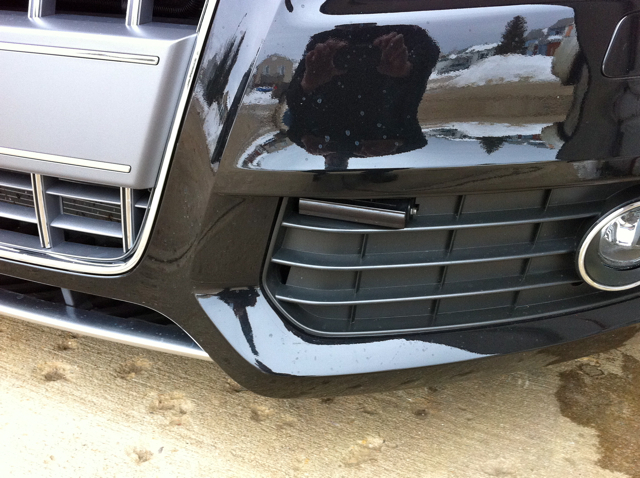

Front laser shifters in the foglight grills - clear-eye view of the the road ahead required for the best reception - one in each grill
Cut grill smaller than shifter then hand-filed for perfect fit.
Front laser shifters in the foglight grills - clear-eye view of the the road ahead required for the best reception - one in each grill
Cut grill smaller than shifter then hand-filed for perfect fit.
03-27-2011, 03:40 PM
#7
Audi Forum - Posts like an A1
Thread Starter
Join Date: Oct 2010
Location: Alberta
Posts: 36
Re: Escort Radar 9500ci Install
9500ci Install

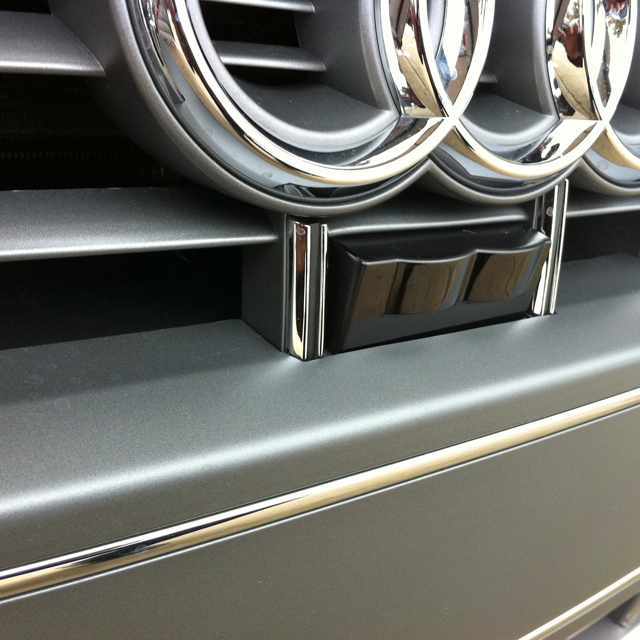

Radar module is a perfect fit in the grill = sits in top of bumper behind grill w velcro; although it is such a perfect fit the velcro is really not required.

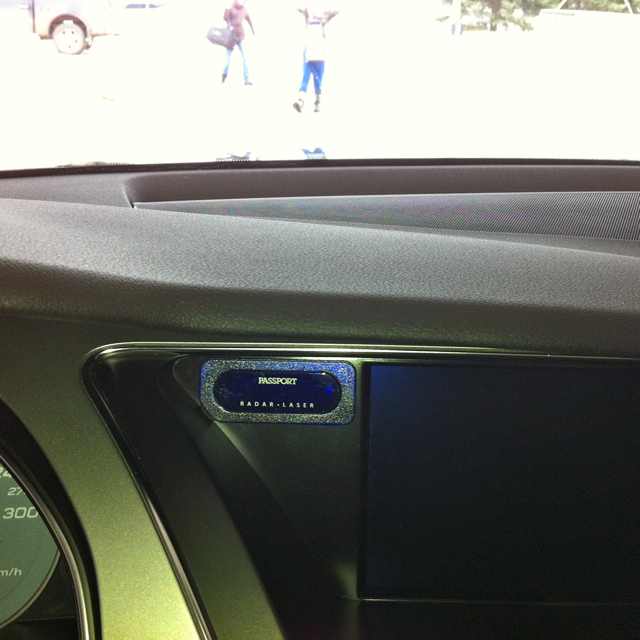

Display module installed beside MMI screen

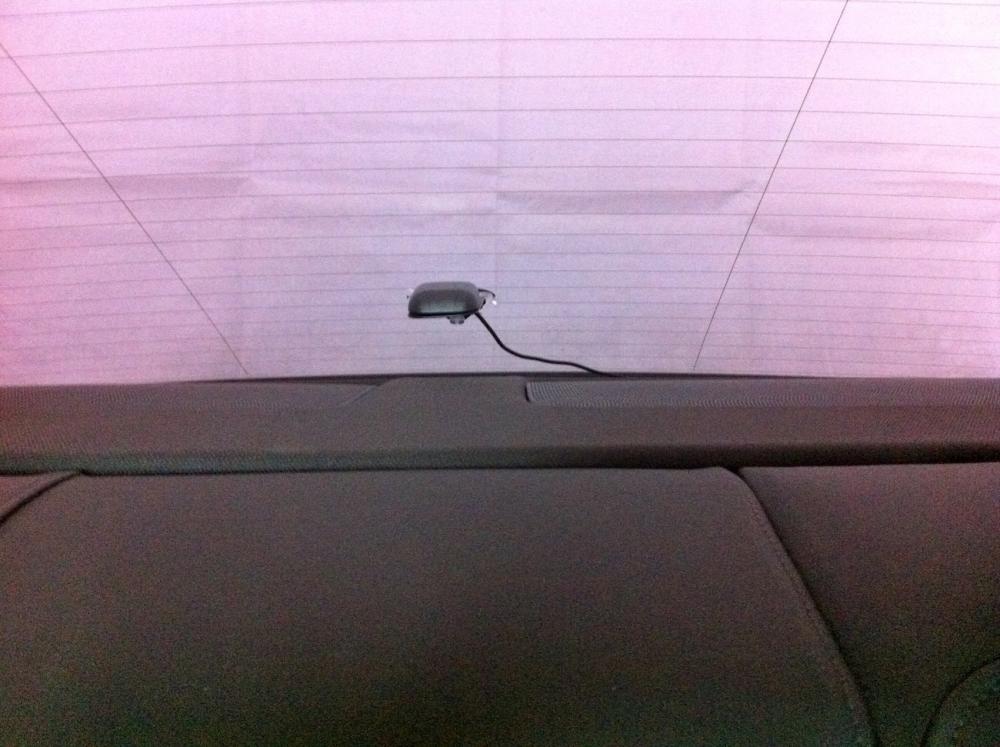

GPS mounted inside back window
Control module mounted on center console
Radar module is a perfect fit in the grill = sits in top of bumper behind grill w velcro; although it is such a perfect fit the velcro is really not required.
Display module installed beside MMI screen
GPS mounted inside back window
Control module mounted on center console
Last edited by GFreeman; 03-28-2011 at 12:21 AM.
